YG20 Cold Forming Dies Tungsten Carbide Tools For Alloy Steel Screws Bolts

Ask Lasest Price
Brand Name :	Seego Carbide
Model Number :	Tungsten Carbide Forming Dies Tools
Certification :	ISO SGS CE
Price :	Negotiable Price
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60 tons/month
Delivery Time :	10~20 days

Add to Cart

Product Details
Company Profile

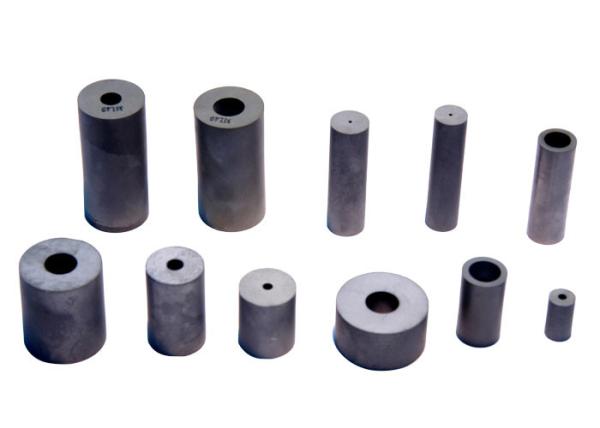

YG20 Cold Forming Dies Tungsten Carbide Tools For Alloy Steel Screws Bolts

YG20 Tungsten Carbide Forming Dies Tools for Alloy Steel Screws Bolts Forming

Descriptions:

Tungsten Carbide Alloy Steel Screws Bolts Forming Dies are designed to sustain high and repeated stress. Tungsten carbide makes the use of forming technology possible for mass production of high-volume parts like screws and bolts.

Our company Seego Carbide make it possible for our forming dies to last longer time and provide superior part accuracy.

Forming dies usually can be divided into punching nib and bushing nib, used in cold forging, warm forging, and hot forging technology situation.

Under strong impact wear working conditions, our tungsten carbide forming dies has good impact toughness, fracture toughness, fatigue strength, flexural strength, and good wear resistance.

We are manufacturers and suppliers of all types of Carbide Forming Dies Tools.

We produce tungsten carbide die blanks for hot and cold forging nib tooling and forming tool applications. Carbide dies are made to order and can be supplied in different tungsten carbide material grades with up to a 25% cobalt binder to meet your specific requirements to produce bolts, screws in a variety of materials. We supply as-sintered condition with the specific overall dimensions and special features our customers request ready for them to produce finished ground tools.

Grades for Tungsten Carbide Forming Dies

GRADE

DENSITY

(g/cm3)

TRS

(N/mm2)

HARDNESS

(HRA)

Application recommended

YG20

13.5

3200

85.5

For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.

Tolerances of different dimensions:

Tolerances of the inner diameter(d) of the blanks as per table below (mm)					Tolerance of blank height(H) as per the table below (mm)
Nominal inner dia.	Nominal length				Nominal out	Nominal diameters
Nominal inner dia.	≤18	＞18-30	＞30-50	＞50	diameters	≤18	＞18-30	＞30-50	＞50
≤6	0-0.45	0-0.55	0-0.65	-	≤14	0.5	0.5	0.6	0.65
＞6-10	0-0.50	0-0.60	0-0.70	0-0.80	≤14	-0.4	-0.4	-0.4	-0.4
＞10-14	0-0.55	0-0.70	0-0.80	0-0.90	＞14-18	0.55	0.55	0.6	0.65
＞14-18	0-0.60	0-0.80	0-0.90	0-1.00	＞14-18	-0.4	-0.4	-0.45	-0.45
＞18-24	0-0.65	0-0.90	0-1.00	0-1.10	＞18-24	0.6	0.6	0.65	0.7
＞24	0-0.70	0-1.00	0-1.10	0-1.20	＞18-24	-0.4	-0.4	-0.45	-0.45
Tolerances of out diameters(D) as per the table below (mm)					＞24-30	0.65	0.65	0.7	0.75
Nominal out	Nominal length				＞24-30	-0.45	-0.45	-0.5	-0.5
diameters	≤18	＞18-30	＞30-50	＞50	＞30-45	0.7	0.7	0.75	0.8
≤14	0.5	0.5	0.6	0.65	＞30-45	-0.5	-0.5	-0.6	-0.6
≤14	-0.4	-0.4	-0.4	-0.4	＞44-55	0.75	0.8	0.85	0.8
＞14-18	0.55	0.55	0.6	0.65	＞44-55	-0.55	-0.6	-0.65	-0.65
＞14-18	-0.4	-0.4	-0.45	-0.45	＞55	-	0.9	0.95	1
＞18-24	0.6	0.6	0.65	0.7	＞55	-	-0.7	-0.75	-0.8
＞18-24	-0.4	-0.4	-0.45	-0.45	The flatness as per the table below
＞24-30	0.65	0.65	0.7	0.75	Nominal length	≤18	＞18-30	＞30-50	＞50
＞24-30	-0.45	-0.45	-0.5	-0.5	Flatness ≤	0.3	0.35	0.4	0.55
＞30-45	0.7	0.7	0.75	0.8
＞30-45	-0.5	-0.5	-0.6	-0.6
＞44-55	0.75	0.8	0.85	0.8
＞44-55	-0.55	-0.6	-0.65	-0.65
＞55	-	0.9	0.95	1
＞55	-	-0.7	-0.75	-0.8

Advantages:

1. The tungsten carbide raw materials were strictly sourced.

2. The advanced technology and machines will be used on HIP with low pressure sintering.
3. HIP sintering makes carbide dies with better density and strength.
4. Special powder pressing technology with HIP sintering, reducing the porosity, greatly improved the carbide dies density and properties.
5. We choose the suitable grade according to customer’s exact applications.
