ISO K30 Cemented Carbide Flat Tungsten Carbide High Wear Resistant
Bar Plate Strip
Description:

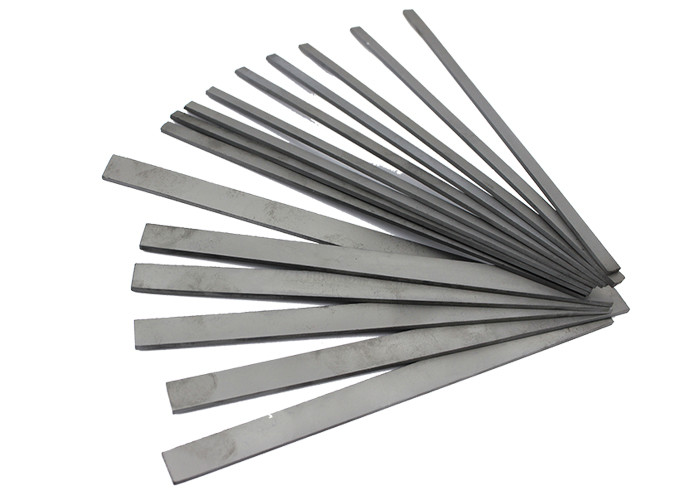

Tungsten carbide strip is widely known as one kind of carbide
cutting tools for its high wear resistance.
Tungsten carbide strip is available for different grinding
geometric parameters and suitable for both cutting materials and
nonmetal materials, also it can be applied to conventional, carbide
inserts, semi-automatic lathe, automatic lathe and planning machine
to work grooves and operate cutting, etc.
Series:
► Gengeral Tungsten carbide strip blades/ planer cutting / flat
strips for wopdworking tools
► STB Tungsten carbide strip blades/ planer cutting / flat strips as
wear parts
► ASA Tungsten carbide tips blades/ planer cutting / flat strips
► Bars for Sand-making Tungsten carbide strips&bars cemented carbide strips&bars
► Shine Tungsten Carbide Bars for tile mould with 3 million line strock
Adantage:
► Prices: Competitive prices in international marketing.
► Sizes: Different Dimensions are available. (The longest length of strips we produced is 1500mm.)
► Grade: Different Grade for choice. (HIP sintered, Extrusion
method, with excellent straightness)
► Delivery: Large stock for order at once.
► Quality: 100% g virgin materials. (Materials report and size
report are given together with shipments).
► Service: Any question or demand, fast response. (Small order
accepted; Professional technical support.)
Speciafications:
►Tungsten carbide strip blades/ planer cutting / flat strips
| L x W x T Unit: mm |
| L | W | T | | L | W | T |
| 140 | 6 | 1.5-6.0 | 230 | 8 | 1.5-6.0 |
| 140 | 8 | 1.5-6.0 | 230 | 10 | 1.5-6.0 |
| 140 | 10 | 1.5-6.0 | 230 | 12 | 1.5-6.0 |
| 140 | 12 | 1.5-6.0 | 230 | 16 | 1.5-6.0 |
| 140 | 14 | 1.5-6.0 | 230 | 18 | 1.5-6.0 |
| 140 | 16 | 1.5-6.0 | 230 | 20 | 1.5-6.0 |
| 140 | 18 | 1.5-6.0 | 230 | 22 | 1.5-6.0 |
| 140 | 20 | 2.0-6.0 | 230 | 25 | 2.0-6.0 |
| 140 | 22 | 2.0-6.0 | 230 | 28 | 2.0-6.0 |
| 140 | 25 | 2.0-6.0 | 230 | 30 | 2.0-6.0 |
| 165 | 6 | 1.5-6.0 | 230 | 32 | 1.5-6.0 |
| 165 | 8 | 1.5-6.0 | 230 | 40 | 1.5-6.0 |
| 165 | 10 | 1.5-6.0 | 330 | 8 | 1.5-6.0 |
| 165 | 12 | 1.5-6.0 | 330 | 10 | 1.5-6.0 |
| 165 | 14 | 1.5-6.0 | 330 | 12 | 1.5-6.0 |
| 165 | 16 | 1.5-6.0 | 330 | 14 | 1.5-6.0 |
| 165 | 18 | 1.5-6.0 | 330 | 16 | 1.5-6.0 |
| 165 | 20 | 2.0-6.0 | 330 | 18 | 2.0-6.0 |
| 165 | 22 | 2.0-6.0 | 330 | 20 | 2.0-6.0 |
| 165 | 24 | 2.0-6.0 | 330 | 22 | 2.0-6.0 |
| 165 | 25 | 2.0-6.0 | 330 | 24 | 2.0-6.0 |
| 165 | 26 | 2.0-6.0 | 330 | 25 | 2.0-6.0 |
| 165 | 28 | 2.0-6.0 | 330 | 28 | 2.0-6.0 |
| 165 | 30 | 2.5-6.0 | 330 | 30 | 2.5-6.0 |
| 165 | 32 | 2.5-6.0 | 330 | 32 | 2.5-6.0 |
| 165 | 35 | 2.5-6.0 | 330 | 35 | 2.5-6.0 |
| 165 | 40 | 2.5-6.0 | 330 | 40 | 2.5-6.0 |
| … | … | … | … | … | … |
Note: Other types of bars may be offered according to customers'
requirement.
Grade Chart:
►China tungsten carbide strip blades/ planer cutting blade /
tungsten carbide strips
| GRADE | ISO | DENSITY (g/cm3) | HARDNESS (HRA) | TRS (N/mm2) | NOTE |
| YG6 | K20 | 14.9 | 2150 | 90.0 | Good wear resistance, used for hard wood, used for processing
original wood, aluminum section bar, brass rod and cast iron. |
| YG6A | K05-K10 | 14.9 | 1860 | 92.0 | Has wear resistance higher than YG6, used for processing hard wood,
original wood, aluminum section bar, brass rod and cast iron. |
| YG6X | K10 | 14.9 | 2100 | 91.0 | |
| YG8 | (K30) | 14.7 | 2320 | 89.5 | Wear and percussion resistance , used for processing hard wood,
soft wood, ferrous and non-ferrous. |
| YG10X | K20-K30 | 14.5 | 2150 | 92.2 | Wear resistance and strength comparatively higher, suitable for
processing cast iron, non-ferrous,metal and non-metallid materials. |
| YL10.2 | K30 | 14.5 | 3600 | 92.2 | Wear resistance and strength comparatively higher, suitable for
processing cast iron, non-ferrous,metal and non-metallid materials |
| YG15 | K40 | 14.00 | 87.5 | 2800 | |
Other grades of carbide strips may be offered according to
customers' requirement.
Producing Flow:
► First Auto Press or Extruding or CIP pressing
► Second HIP sintered
► Third cutting shorter to customers’ length
► Grinding the surface, or sandblasted on the surface.
► Quality testing; size inspection.
► Packing
We provide high quality tungsten carbide powder strip
blades/tungsten carbide strips in lots of different dimensions and
grade.
Packing and Delivery:
► First in pieces
► Into paper boxes
► Into paper cartons or wooden cases, each about 30 kgs.
