High Bending Strength Tungsten Carbide Plates / Strips or Block as
Wear Part
Adantage:
► Prices: Competitive prices in international marketing.
► Sizes: Different Dimensions are available. (The longest length of
strips we produced is 1500mm.)
► Grade: Different Grade for choice. (HIP sintered, Extrusion
method, with excellent straightness)
► Delivery: Large stock for order at once.
► Quality: 100% g virgin materials. (Materials report and size
report are given together with shipments).
► Service: Any question or demand, fast response. (Small order
accepted; Professional technical support.)
Series:
► Gengeral Tungsten carbide strip blades/ planer cutting / flat
strips/Plates for wordworking tools
► STB Tungsten carbide strip blades/ planer cutting / flat strips as
wear parts
► ASA Tungsten carbide tips blades/ planer cutting / flat strips
► Bars for Sand-making Tungsten carbide strips&bars cemented carbide strips&bars
► Shine Tungsten Carbide Bars for tile mould with 3 million line strock
Specification:

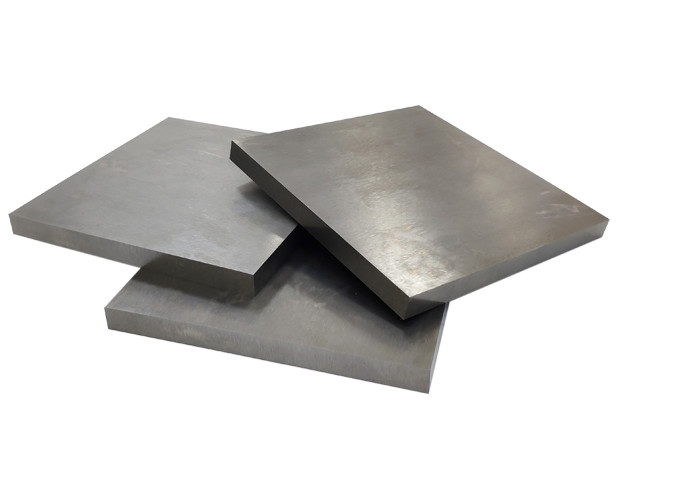

►Tungsten Carbide Plates or Block
Dimensions(mm) |
| L | W | S |
| 200 | 200 | 10-45 |
| 150 | 150 | 10-45 |
| 150 | 130 | 10-45 |
| 150 | 100 | 10-45 |
| 150 | 80 | 10-45 |
| 120 | 120 | 10-45 |
| 100 | 100 | 10-50 |
| 100 | 50 | 10-50 |
| 100 | 45 | 10-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-40 |
| 70 | 35 | 5-40 |
| 45 | 25 | 5-20 |
| 35 | 19 | '5-20 |
| 20 | 20 | '5-20 |
| 18 | 13 | '5-20 |
Grade Chart:
| Grade | Density (g/cm3) | Hardness
(HRA) | TRS
(MPa) | Applications recommended |
| YG6A | 14.95 | 1800 | 92.5 | Fine grade alloy, with good wear resistance, used for processing
blades, wear resistance parts etc. |
| YG8 | 14.80 | 2200 | 89.5 | High bending strength, wear resistance lower than MK6A, used for
processing blades, wear resistance parts etc. |
| YG15 | 14.0 | 2800 | 87.5 | Used for punch dies, stamping dies and wear resistance parts. |
| YG20 | 13.5 | 3200 | 85.5 | High bending strength, used for step dies and other stamping dies. |
Other grades of carbide strips may be offered according to
customers' requirement.
Producing Flow:
► First extruding or CIP pressing (diameter above 40.0mm)
► Second HIP sintered
► Third cutting shorter to customers’ length
► Grinding the surface, or sandblasted on the surface.
► Quality testing; size inspection.
► Packing
We provide high quality tungsten carbide powder strip
blades/tungsten carbide strips in lots of different dimensions and
grade.
Packing and Delivery:
► First in pieces
► Into paper boxes
► Into paper cartons or wooden cases, each about 30 kgs.
