    YN6 YG6 YN10 YG10X Tungsten Carbide Bar For Ceramic Tile Mould High Precision

    Ask Lasest Price
    Brand Name : SEEGO CARBIDE
    Certification : CE, SGS, ISO
    Payment Terms : L/C, T/T, Western Union, , MoneyGram
    Supply Ability : 45Ton/Month
    Delivery Time : One Week Time after Order Confirmation
    Model Number : YN6 YG6 YN10 YG10X Tungsten Carbide Bar For Ceramic Tile Mould High Precision
    Price : USD30-50 Per KG
    • Product Details
    • Company Profile

    YN6 YG6 YN10 YG10X Tungsten Carbide Bar For Ceramic Tile Mould High Precision

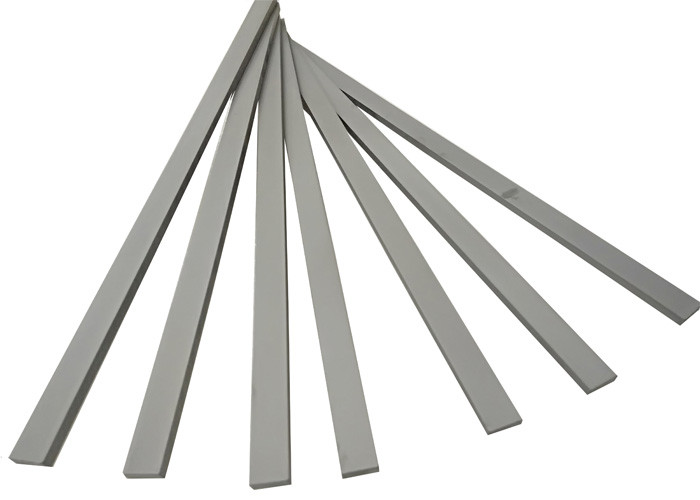

    YN6 YG6 YN10 YG10X Tungsten Carbide Strips and Plates for Ceramic Tile Mould


    Descriptions:


    Tungsten carbide strips and plates are popular applied in ceramic tile moulds making, for its high hardness and good wear resistance.

    carbide strips are also widely used in wood processing industry, commonly used for general wood cutters, hard wood cutters, plastic and tobacco paper cutting. Various grades can be recommended depending on the strips innumerable wood working applications


    Series and Speciafications:


    TypeDimension
    LWT
    140×W×T1406-251.5-6.0
    165×W×T1656-401.5-6.0
    230×W×T2308-402.0-6.0
    320×W×T3208-402.0-6.0

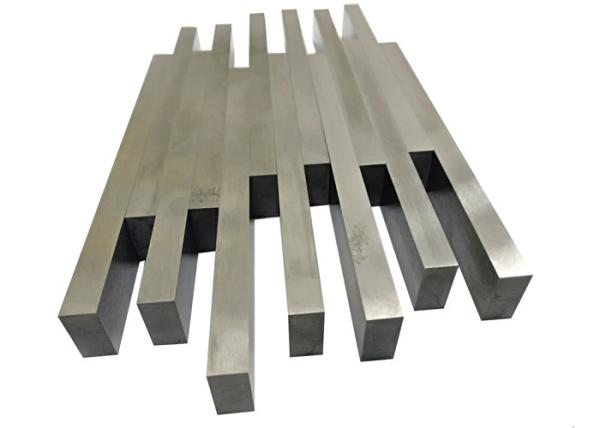

    ►Tungsten Carbide Plates or Block

    YN6 YG6 YN10 YG10X Tungsten Carbide Strips and Plates for Ceramic Tile Mould Dimensions(mm)

    LWS
    20020010-45
    15015010-45
    15013010-45
    15010010-45
    1508010-45
    12012010-45
    10010010-50
    1005010-50
    1004510-50
    805510-50
    804010-40
    70355-40
    45255-20
    3519'5-20
    2020'5-20
    1813'5-20

    Grade Chart:


    GradeDensity (g/cm3)Hardness
    (HRA)
    TRS
    (MPa)
    Applications recommended
    YG6A14.95180092.5Fine grade alloy, with good wear resistance, used for processing blades, wear resistance parts etc.
    YG814.80220089.5High bending strength, wear resistance lower than MK6A, used for processing blades, wear resistance parts etc.
    YG1514.0280087.5Used for punch dies, stamping dies and wear resistance parts.
    YG2013.5320085.5High bending strength, used for step dies and other stamping dies.

    Other grades of carbide strips may be offered according to customers' requirement.


    Advantage:


    ► Prices: Competitive prices in international marketing.

    ► Sizes: Different Dimensions are available. (The longest length of strips we produced is 1500mm.)

    ► Grade: Different Grade for choice. (HIP sintered, Extrusion method, with excellent straightness)

    ► Delivery: Large stock for order at once.

    ► Quality: 100% g virgin materials. (Materials report and size report are given together with shipments).

    ► Service: Any question or demand, fast response. (Small order accepted; Professional technical support.)


    Producing Flow:


    ► First extruding or CIP pressing (diameter above 40.0mm)

    ► Second HIP sintered

    ► Third cutting shorter to customers’ length

    ► Grinding the surface, or sandblasted on the surface.

    ► Quality testing; size inspection.

    ► Packing

    We provide high quality tungsten carbide powder strip blades/tungsten carbide strips in lots of different dimensions and grade.


    Packing and Delivery:


    ► First in pieces

    ► Into paper boxes

    ► Into paper cartons or wooden cases, each about 30 kgs.


    Note: Other types of bars may be offered according to customers' requirement.
