One End 45° Chamfer Tungsten Carbide Rod for Anti-vibration Boring
and Step Reduction Bars
We offer tungsten carbide rod for Anti-vibration Boring and Step
Reduction Bars.
One end 45 degree chamfer or other request is no problem.
Advantage:
1. HIP sintering + Extrusion + CIP Method to ensure good performance.
2. Most complete production line of grounded Cut-to-length carbide
rods for cutting tool blanks in stock!
3. Various grades and types available according to different
working environment request.
4. Very good price, discount for large quantity.
5. Fast delivery time.
6. High precision ground, such as h5, h6
7. The smallest Dia we made is 0.3mm with standard length 330mm
8. The longest length we made is 1000mm
9. Special Perform to produce different shapes of Tungsten Carbide
Rods/Bars based on drawings.
Series and Speciafications:
| ► Diameter Size: | Diamter from 0.3mm to 40mm , lenght between 10-1000mm (standard length is 310mm and 330mm) |
| ► Tolerances: | Blank/Ungrounded, polish with h6 or h5 tolerances, Customized
tolerances are ok |
Application:
| 1 | For making Varioius drill bits |
| 2 | Automobile Special Cutters |
| 3 | Printed Circuit Board |
| 4 | Special Cutters |
| 5 | Engine Special Cutters |
| 6 | Milling and Drill Cutter Tools, Step Reduction Bars |
| 7 | Graver for woodworking and Medicion |
| 8 | Endmills, Gun Drills, PCB Drills, Anti-vibration Boring Bars |
Grade:
| Grade | ISO
Grade | Cobalt
% | Density
g/cm3 | Hardness
HRA |
| YG8 | K30 | 8 | 14.8 | 89.5 |
| YG6 | K20 | 6 | 14.95 | 90.5 |
| YG6X | K10 | 6 | 14.95 | 91.5 |
| YL10.2 | K30 | 10 | 14.5 | 91.8 |
| YG13X | K30-K40 | 13 | 14.3 | 89.5 |
| YG15 | K40 | 15 | 14 | 87.5 |

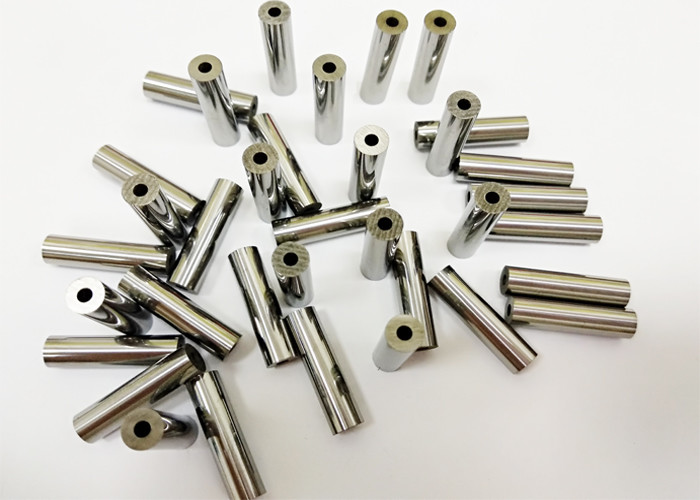

Main Series of the Tungsten Carbide Rods:
Packing and Delivery:
► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.
The Three Other Main Products of our Company are as below:
1- General Tungsten Carbide Products:
Carbide Rods and Plates, Carbide Strips/Bars, Drawing Dies, Cold
Forging Dies,Carbide Nozzles and Mining Buttons, etc.
2- Cutting tools:
End Mills, Carbide Drills, Woodworking Tools, Carbide Adaptor
Holders, Carbide Burrs, Indexable Inserts, Shims and Substrate
Inserts, Woodworking Tools, etc.
3- Nonstandard & Precision Products:
Wire Guides, Gun Drill Tips, Valve Seat and Balls, Carbide Rollers,
Circular Cutting Discs, Carbide Blades, Grinding Bushes, Carbide
Scraper, etc.
Note: Welcome------customizable for individual requirements.
