One Straight Coolant Hole Cemented Carbide Rods Good Wear Resistant

Ask Lasest Price
Brand Name :	SEEGO CARIBDE
Model Number :	Dia from 0.3-40mm, Length 330mm
Certification :	SGS, CE, ISO
Price :	Can be negociated together
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	45Tons/Month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

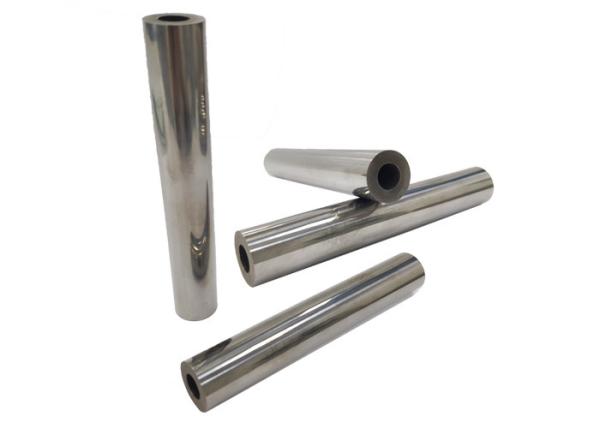

One Straight Coolant Hole Cemented Carbide Rods Good Wear Resistant

One Straight Coolant Hole Tungsten Carbide Rod with Good Wear Resistant

For Coolant Tungsten Carbide Rods with oil duct, we produce and supply different types of solid caride rods

with inner coolant holes and different grades in stock, including:

NO.	Different Types for Coolant Tungsten Carbide Rods with oil duct
1	Carbide rods with 1 straight coolant oil hole
2	Carbide rods with 2 straight coolant oil hole
3	Carbide rods with 3 straight coolant oil hole
4	Standard 30° helical coolant carbide rods
5	Standard 40° helical coolant carbide rods

Series-Our Tungsten Carbide Rod includes the below series:

NO.	Series
1	Solid Unground Tungsten Carbide Rod Blanks
2	Cemented Carbide Rods with One Straight Coolant Hole
3	Tungten Carbide Rods with Two Straight Coolant Holes
4	Solid Carbide Rods with Two 15° 30° or 45° 65° Helical Holes
5	Cut-to-Length(CTL) Tungsten Carbide Rod, Ground, Polished, Chamfer One End
Speciafication can be made based on customer's details requirements.

Grade:

Grade	ISO Grade	Cobalt %	Density g/cm3	Hardness HRA
YG8	K30	8	14.8	89.5
YG6	K20	6	14.95	90.5
YG6X	K10	6	14.95	91.5
YL10.2	K30	10	14.5	91.8
YG13X	K30-K40	13	14.3	89.5
YG15	K40	15	14	87.5

Speciafications:

► Cemented Carbide Rods with One Straight Coolant Hole

Specifications:D×d×L			Rods with Central Hole
D	Tol	d	Tol	L	Tol	C
mm	mm	mm	mm	mm	mm	mm
2.5	+0.20～0.50	0.3	±0.10	330	0～+5.0	0.2
4	+0.20～0.50	1	±0.15	330	0～+5.0	0.2
6	+0.20～0.50	1	±0.15	330	0～+5.0	0.2
8	+0.20～0.50	1.5	±0.15	330	0～+5.0	0.2
10	+0.30～0.60	2	±0.20	330	0～+5.0	0.25
12	+0.30～0.60	2	±0.20	330	0～+5.0	0.25
14	+0.30～0.60	2	±0.20	330	0～+5.0	0.25
16	+0.30～0.60	2	±0.20	330	0～+5.0	0.25
18	+0.40～0.80	3	±0.25	330	0～+5.0	0.3
20	+0.40～0.80	3	±0.25	330	0～+5.0	0.3
22	+0.40～0.80	3	±0.25	330	0～+5.0	0.3
24	+0.40～0.80	4	±0.30	330	0～+5.0	0.3
26	+0.40～0.80	5	±0.35	330	0～+5.0	0.3

► Tungten Carbide Rods with Two Straight Coolant Holes

Specifications:D×2d×TK×L			Rods with Two Straight Coolant Holes
D	Tol	d	Tol	TK	Tol	L	Tol	a
mm	mm	mm	mm	mm	mm	mm	mm	mm
6.3	0～+0.3	1	±0.10	3	-0.2	330	0～+5.0	0.15
8.3	0～+0.3	1	±0.15	4	-0.3	330	0～+5.0	0.15
10.3	0～+0.3	1.4	±0.15	5	-0.3	330	0～+5.0	0.2
12.3	0～+0.4	1.75	±0.15	6	-0.5	330	0～+5.0	0.3
14.3	0～+0.4	1.75	±0.15	7	-0.5	330	0～+5.0	0.37
16.3	0～+0.4	2	±0.20	8	-0.5	330	0～+5.0	0.4
18.3	0～+0.5	2	±0.20	9	-0.8	330	0～+5.0	0.5
20.4	0～+0.5	2.5	±0.25	10	-0.8	330	0～+5.0	0.5

Application:

► For PCB Drills, Drills, Dnd Mills & Dole Drilling Tools, Gun Drills
► For Reamers
► For Mold Punches
► Core Pins, etc.

Packing and Delivery:

► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.

Comapny Info:

Zhuzhou Seego Carbide Tools Co., Ltd. is located in the hometown of Chinese carbide industry – Zhuzhou city.

The Company has more than 10 years ‘experience in manufacturing, designing and sales of various kinds of carbide products. Depending on our talented engineers and skillful workers, we always provide our customers the products with good quality, competitive price, fast turnaround and reliable after sales service.

Note: Welcome------customizable for individual requirements.
