High Standard Tungsten Carbide Rods with Two Helical Holes
Available
For Coolant Tungsten Carbide Rods with oil duct, we produce and supply different types of solid caride rods with
inner coolant holes and different grades in stock, including:
| NO. | Different Types for Coolant Tungsten Carbide Rods with oil duct |
| 1 | Carbide rods with 1 straight coolant oil hole |
| 2 | Carbide rods with 2 straight coolant oil hole |
| 3 | Carbide rods with 3 straight coolant oil hole |
| 4 | Standard 30° helical coolant carbide rods |
| 5 | Standard 40° helical coolant carbide rods |
Speciafications:

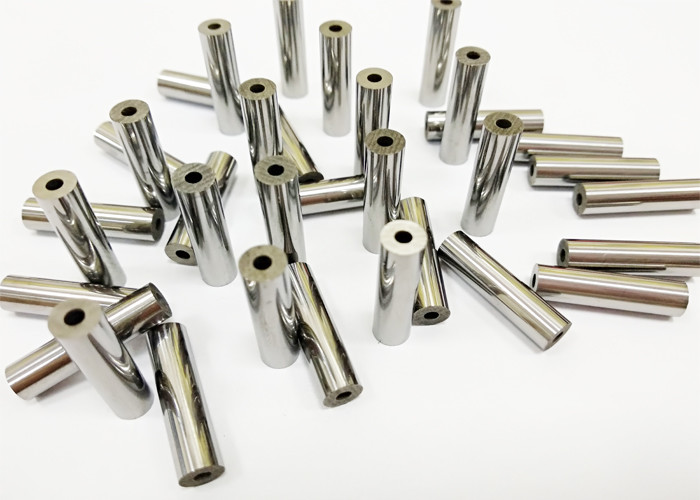

► Cemented Carbide Rods with One Straight Coolant Hole
| Specifications:D×d×L | Rods with Central Hole |
| D | Tol | d | Tol | L | Tol | C |
| mm | mm | mm | mm | mm | mm | mm |
| 2.5 | +0.20～0.50 | 0.3 | ±0.10 | 330 | 0～+5.0 | 0.2 |
| 4 | +0.20～0.50 | 1 | ±0.15 | 330 | 0～+5.0 | 0.2 |
| 6 | +0.20～0.50 | 1 | ±0.15 | 330 | 0～+5.0 | 0.2 |
| 8 | +0.20～0.50 | 1.5 | ±0.15 | 330 | 0～+5.0 | 0.2 |
| 10 | +0.30～0.60 | 2 | ±0.20 | 330 | 0～+5.0 | 0.25 |
| 12 | +0.30～0.60 | 2 | ±0.20 | 330 | 0～+5.0 | 0.25 |
| 14 | +0.30～0.60 | 2 | ±0.20 | 330 | 0～+5.0 | 0.25 |
| 16 | +0.30～0.60 | 2 | ±0.20 | 330 | 0～+5.0 | 0.25 |
| 18 | +0.40～0.80 | 3 | ±0.25 | 330 | 0～+5.0 | 0.3 |
| 20 | +0.40～0.80 | 3 | ±0.25 | 330 | 0～+5.0 | 0.3 |
| 22 | +0.40～0.80 | 3 | ±0.25 | 330 | 0～+5.0 | 0.3 |
| 24 | +0.40～0.80 | 4 | ±0.30 | 330 | 0～+5.0 | 0.3 |
| 26 | +0.40～0.80 | 5 | ±0.35 | 330 | 0～+5.0 | 0.3 |
► Tungten Carbide Rods with Two Straight Coolant Holes
| Specifications:D×2d×TK×L | Rods with Two Straight Coolant Holes |
| D | Tol | d | Tol | TK | Tol | L | Tol | a |
| mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 6.3 | 0～+0.3 | 1 | ±0.10 | 3 | -0.2 | 330 | 0～+5.0 | 0.15 |
| 8.3 | 0～+0.3 | 1 | ±0.15 | 4 | -0.3 | 330 | 0～+5.0 | 0.15 |
| 10.3 | 0～+0.3 | 1.4 | ±0.15 | 5 | -0.3 | 330 | 0～+5.0 | 0.2 |
| 12.3 | 0～+0.4 | 1.75 | ±0.15 | 6 | -0.5 | 330 | 0～+5.0 | 0.3 |
| 14.3 | 0～+0.4 | 1.75 | ±0.15 | 7 | -0.5 | 330 | 0～+5.0 | 0.37 |
| 16.3 | 0～+0.4 | 2 | ±0.20 | 8 | -0.5 | 330 | 0～+5.0 | 0.4 |
| 18.3 | 0～+0.5 | 2 | ±0.20 | 9 | -0.8 | 330 | 0～+5.0 | 0.5 |
| 20.4 | 0～+0.5 | 2.5 | ±0.25 | 10 | -0.8 | 330 | 0～+5.0 | 0.5 |
Application:
Solid carbide rods used for making the drill bits/ end-mills /
reamers .automobile special cutters, printed circuit board special
cutters, engine special cutters, Horologe processing special
cutters, integral vertical milling cutter, graver and etc. Besides,
they can bu used for making of cemented carbide stamping head, Core
bar and perforatioin tools.
Packing and Delivery:
► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.
Comapny Info:
SEEGO CARBIDE produce and supply unground carbide blanks in stock
with HIP sintering and 100% virgin materials. Our grade includes
ISO K05 to K40, from machining carbon steel to aluminum,
non-ferrous metals and tianium or we develop grade for your
applications.
Depends on the dimensions of the rods, we have three different ways to produce them, which help us to have high efficiency and quality.
Please see the below three different ways to produce Tungsten
Carbide Rod:
1. By Extrusion
2. By Automatic Press
3. By Cold Isostatic Press
Series-Our Tungsten Carbide Rod includes the below series: :
| NO. | Series |
| 1 | Solid Unground Tungsten Carbide Rod Blanks |
| 2 | Cemented Carbide Rods with One Straight Coolant Hole |
| 3 | Tungten Carbide Rods with Two Straight Coolant Holes |
| 4 | Solid Carbide Rods with Two 15° 30° or 45° 65° Helical Holes |
| 5 | Cut-to-Length(CTL) Tungsten Carbide Rod, Ground, Polished, Chamfer
One End |
Speciafication can be made based on customer's details
requirements.
|
Note: Welcome------customizable for individual requirements.
For more details, please contact us!
