YG20 Tungsten Carbide Wire Mesh Rolls for Colding Rolling Mills in
Steel Plant
Product Description& application:

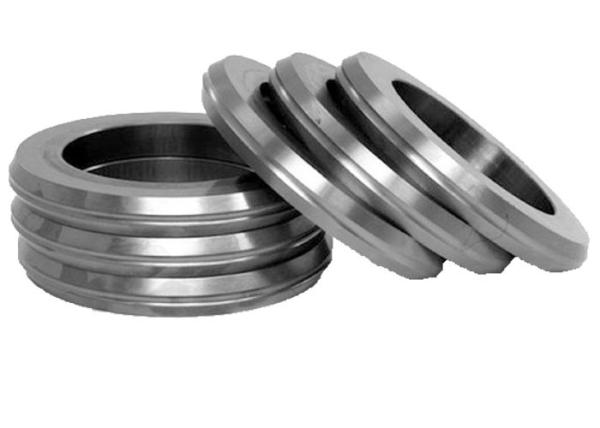

Carbide rolls are widely used in steel plant for metal forming,
especially in hot rolling industry mainly for intermediate and last
finishing stands to ensuring superior surface finish and
dimensional stability of processed metal products.
Rolls are also commonly used for wire flattening, de-scaling and
straightening applications.
Production Process:
To ensure high quality, we assured our customers that:
1. All materials are tested in terms of density, hardness and T.R.S
before use.
2. Every piece of product goes through in-process and final
inspection.
3. Every batch of product can be traced.
Our advantages:
1. We R&D the 1st tungsten carbide roll ring in China.
2. Over 10 years' experience of roll ring in China.
3 Whole production line from raw material to end finishing under
ISO9001 system management.
Samples:
Normally we do not offer free samples, but we could properly adjust
according to detailed requirement.
Sample lead time: 15 days around with existing mould.
Mould time: 20-65 days depends on detailed drawing and requirement.
Production lead time: 15-90 days depends on mould and material
Shipment:
For small order, Express will be the best. It takes only 3-5 days
after we sent via TNT, Fedex or DHL. The freight can be to collect
via your express company account or prepaid by us.
For bulk order, sea ship way is best but take longer time.
For urgent orders, we suggest via air to airport or by Express send
to your door.
| Blank size with the tolerance(mm): |
| Dimension and Tolerance mm |
| D | Tolerance | d | Tolerance | H | Tolerance |
|
| <=125 | +0.5~+1.8 | <=90 | -1.5~-0.5 | <=20 | +0.5~+1.5 |
| >125~180 | +0.5~+2.5 | >90~95 | -1.5~-0.5 | >20 | +0.5~+2.0 |
| >180~250 | +0.5~+2.8 | >95 | -2.0~-0.5 | --- | |
| >250 | +0.5~+3.5 | ---- | --- | --- | |
| Finished size with the tolerance(mm): |
| Dimension and Tolerance mm |
| OD | Tolerance | ID | Tolerance | H | Tolerance |
|
| <=125 | +/- 0.015 | <=90 | 0.0/+0.02 | <=20 | +/- 0.01 |
| >125~180 | >90~95 | >20 |
| >180~250 | >95 | --- |
| >250 | ---- | ---
|
| Finished size (mm): |
| Radial run-out of groove | Radial run-out of periphery | End face runout | Surface parallelism | Inner hole
cylindricity |
|
| 0.013 | 0.013 | 0.01 | 0.01 | 0.01 |
| Avaliable Dimension: |
| Type | | Dimension | |
| D(mm) | d(mm) | H(mm) |
| HR-156×94×70 | 156 | 92 | 62 |
| HR-156×87×62 | 156 | 87 | 61 |
| HR-158.8×87.32×62 | 158.8 | 87.32 | 62 |
| HR-170.66×95×70 | 170.66 | 95 | 70 |
| HR-170.66×95×57.35 | 170.66 | 95 | 57.35 |
| HR-180×87.32×72 | 180 | 87.32 | 72 |
| HR-210.5×120.65×72 | 228.3 | 120.65 | 72 |
| HR-212 ×120 ×60 | 212 | 120 | 60 |
| HR-228.3×126×72 | 228.3 | 126 | 72 |
| HR-228×135×72 | 228 | 135 | 72 |
| HR-228×130×72 | 228 | 130 | 72 |
| HR-228.34×130×44.476 | 228.34 | 130 | 44.476 |
| HR-285×160×95 | 285 | 160 | 95 |
| HR-285×160×70 | 285 | 160 | 70 |
| HR-300×160×70 | 300 | 160 | 70 |
| Type | | Dimension | |
| D(mm) | d(mm) | H(mm) |
| CR-270×190×30 | 270 | 90 | 30 |
| CR-250×210×30 | 250 | 210 | 30 |
| CR-200×90×20 | 200 | 90 | 20 |
| CR-180×95×18 | 180 | 95 | 18 |
| CR-180×125×25 | 180 | 125 | 25 |
| CR-167×55×25 | 167 | 55 | 25 |
| CR-160×90×15 | 160 | 90 | 15 |
| CR-150×90×15 | 150 | 90 | 15 |
| CR-150×90×20 | 150 | 90 | 20 |
| CR-140×90×15 | 140 | 90 | 15 |
| CR-140×90×15 | 140 | 90 | 15 |
| CR-125×82×15 | 125 | 82 | 15 |
| CR-125×82×20 | 125 | 82 | 20 |
Wire RangeΦ
(mm) | OutsideΦ
(mm) | InsideΦ
(mm) | Thickness
(mm) |
| 4-8.5 | 123 | 82 | 15 |
| 9-12 | 123 | 82 | 20 |
| 4-8.5 | 125 | 90 | 15 |
| 9-12 | 125 | 90 | 20 |
| 4-8.5 | 140 | 90 | 15 |
| 9-12 | 140 | 90 | 20 |
| 4-8.5 | 150 | 90 | 15 |
| 9-12 | 150 | 90 | 20 |
| 4-8.5 | 160 | 90 | 15 |
| 9-12 | 160 | 90 | 20 |
| 4-8.5 | 220 | 130 | 15 |
| 9-12 | 220 | 130 | 20 |
We produce and supply various sizes of carbide roller blanks and
finish grinding rollers.
Lead Time:
| Quantity(Pieces) | 1-10 | 11 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 30 | 40 | 60 | To be negotiated |
