Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate

Ask Lasest Price
Brand Name :	Seego Carbide
Model Number :	USA standard, Europe standard, JA, JX series
Certification :	CE/ISO:9001
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	30 tons/month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

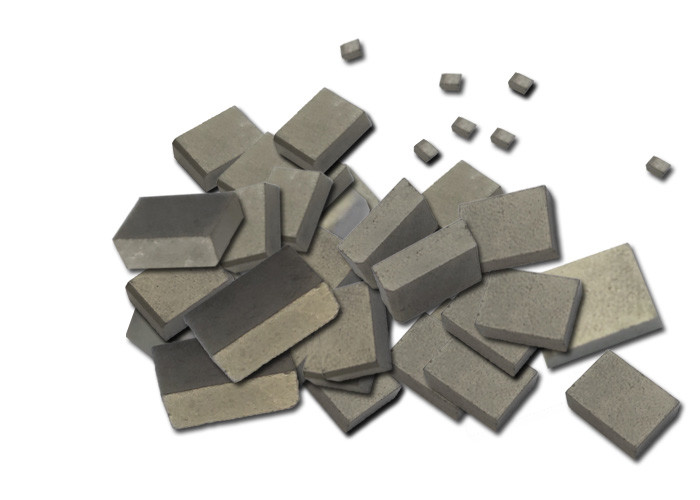

Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate

Good Wear Resistance Tungsten Carbide Tool Tips For Metal Cutting

We are involved in supplying an exclusive range of Cemented Carbide Saw Tips in the industry.

Features:

Smooth finishing

Resistance against abrasion
Dimensionally accurate
Durability

High tensile strength
Higher hardness

We are one of the most professional supplier of high quality tungsten carbide saw tips for TCT saw blades in woodworking and metalworking.

Our carbide saw tips are specialized in cutting all kinds of grass, wood, composite wood, aluminum, metal and etc. Different grades are available, such as K01, K05, K10, K20, K30, K40, P40, M30 etc.

We have our own mould production line, we can tailor-make any size according to our customers' drawings.

Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate

Below are some type of carbide saw tips:

Type	Dimension(mm)
Type	L	B	C	α°	β°	γ°
JX5316	5.3	1.6	4	30	20	0.5
JX5317	5.3	1.7	4.1	10	18	0.5
JX5417	5.4	1.7	4.1	20	20	0.5
JX5515	5.5	1.5	3.9	10	17	0.5
JX55155	5.5	1.55	4.3	28	15	0.5
JX5515A	5.5	1.5	4.3	28	-	0.5
JX5515B	5.5	1.5	5	30	0.48×45°	0.5
JX5516	5.5	1.6	4.3	28	15	0.5
JX5516A	5.5	1.6	3.9	30	14	0.5
JX5516B	5.5	1.6	3.9	20	14	0.5
JX5516C	5.5	1.6	4.3	28	15	0.5
JX5517	5.5	1.7	3.7	15	20	0.5
JX5517A	5.5	1.7	4.2	30	20	0.5
JX5517B	5.5	1.7	3.7	30	21	0.5
JX5517C	5.5	1.7	3.7	25	21.2	0.5
JX5518	5.5	1.8	3.7	30	24	0.5
JX5518A	5.5	1.8	3.9	25	25	0.5
JX5616B	5.6	1.6	4.3	30	0.5×45°
JX5618	5.6	1.8	3.3	24	-	0.5

Permissible tolerance of cemented carbide saw tips:

Length	Tolerance		Width	Tolerance		Thickness	Tolerance		Radius	Tolerance
Length	Common	Superior	Width	Common	Superior	Thickness	Common	Superior	Radius	Common	Superior
≤5	±0.05	±0.03	≤2.0	+0.06 -0.04	+0.04 -0.02	≤1.5	±0.05	±0.03	≤1.0	±0.08	±0.05
＞5-7	±0.08	±0.05	＞2-3.5	+0.08 -0.04	+0.04 -0.02	＞1.5-2.5	±0.06	±0.03	＞1.0-1.5	±0.08	±0.05
＞7-9	±0.12	±0.05	＞3.5-4.5	+0.08 -0.04	+0.06 -0.02	＞2.5-4.0	±0.06	±0.04	＞1.5	±0.10	±0.08
＞9-12	±0.15	±0.07	＞4.5-6.0	+0.08 -0.04	+0.06 -0.02	＞4.0	±0.07	±0.04
＞12	±0.20	±0.10	＞6.0	+0.10 -0.05	+0.08 -0.02

Wear Resistance Tungsten Carbide Saw Tips K01-K05 Grade Dimensionally Accurate
