Customized Tungsten Carbide Saw Tips For Cutting Stone 92.3HRA Hardness

Ask Lasest Price
Brand Name :	Seego Carbide
Model Number :	USA standard, Europe standard, JA, JX series
Certification :	CE/ISO:9001
Price :	Negociated
Payment Terms :	T/T, L/C, D/P, Western Union
Supply Ability :	5 tons per month
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

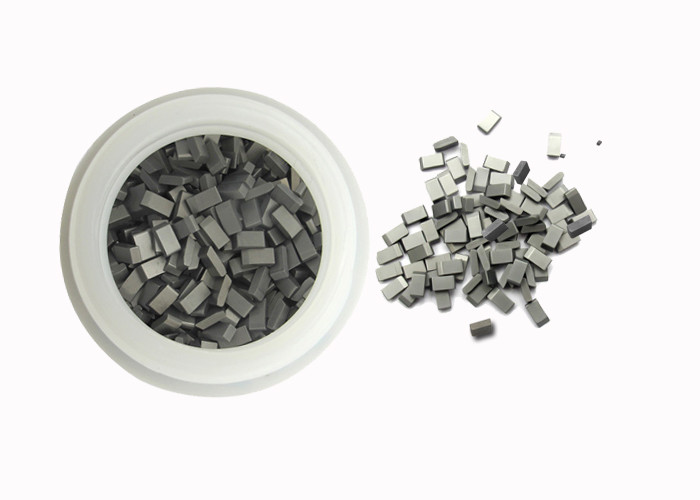

Customized Tungsten Carbide Saw Tips For Cutting Stone 92.3HRA Hardness

Different Tungsten Carbide Saw Tips for Cutting Stone Available

Description of saw tips for saw blade

We are one of the most professional supplier of high quality tungsten carbide saw tips for TCT saw blades in stone, the sizes and grade are different, we can offer the whole series.

Our carbide saw tips are specialized in cutting all kinds of grass, wood, composite wood, aluminum, metal and etc. Different grade s are available, such as K01, K05, K10, K20, K30, K40, P40, M30 etc.

We have our own mould production line, we can tailor-make any size according to our customers' drawings.

Features:

1. Easy to be welded

2. High hardness and wearability

3. Stable performance, no broken teeth

4. Perfect finish

5. Smooth installation

6. Accurate dimension

Type	Dimension(mm)
Type	L	B	C	α°	β°	γ°
JX5316	5.3	1.6	4	30	20	0.5
JX5317	5.3	1.7	4.1	10	18	0.5
JX5417	5.4	1.7	4.1	20	20	0.5
JX5515	5.5	1.5	3.9	10	17	0.5
JX55155	5.5	1.55	4.3	28	15	0.5
JX5515A	5.5	1.5	4.3	28	-	0.5
JX5515B	5.5	1.5	5	30	0.48×45°	0.5
JX5516	5.5	1.6	4.3	28	15	0.5
JX5516A	5.5	1.6	3.9	30	14	0.5
JX5516B	5.5	1.6	3.9	20	14	0.5
JX5516C	5.5	1.6	4.3	28	15	0.5
JX5517	5.5	1.7	3.7	15	20	0.5
JX5517A	5.5	1.7	4.2	30	20	0.5
JX5517B	5.5	1.7	3.7	30	21	0.5
JX5517C	5.5	1.7	3.7	25	21.2	0.5
JX5518	5.5	1.8	3.7	30	24	0.5
JX5518A	5.5	1.8	3.9	25	25	0.5
JX5616B	5.6	1.6	4.3	30	0.5×45°
JX5618	5.6	1.8	3.3	24	-	0.5

Grade and application:

Grade	Equal to ISO Category Number	Performance			useage
		Density	Bend Strength	Hardness
		G/Cm3	N/mm2	HRA
YG3	K01	14.9-15.3	≥1180	≥90.5	sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X	K01	15.1-15.4	≥1300	≥91.5
YG6X	K10	14.8-15.1	≥1560	≥91.0	Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A	K10	14.7-15.1	≥1580	≥91.0
YG6	K20	14.7-15.1	≥1670	≥89.5	Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8	K20-K30	14.6-14.9	≥1840	≥89	Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YT15	P10	11.1-11.6	≥1180	≥91.0	Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel.
YT14	P20	11.2-11.8	≥1270	≥90.5	Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting.
YT5	P30	12.5-13.2	≥1430	≥89.5	Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting.
YW1	M10	12.7-13.5	≥1180	≥91.5	Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel.
YW2	M20	12.5-13.2	≥1350	≥90.5	Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel.

Permissible tolerance of cemented carbide saw tips:

Length	Tolerance		Width	Tolerance		Thickness	Tolerance		Radius	Tolerance
Length	Common	Superior	Width	Common	Superior	Thickness	Common	Superior	Radius	Common	Superior
≤5	±0.05	±0.03	≤2.0	+0.06 -0.04	+0.04 -0.02	≤1.5	±0.05	±0.03	≤1.0	±0.08	±0.05
＞5-7	±0.08	±0.05	＞2-3.5	+0.08 -0.04	+0.04 -0.02	＞1.5-2.5	±0.06	±0.03	＞1.0-1.5	±0.08	±0.05
＞7-9	±0.12	±0.05	＞3.5-4.5	+0.08 -0.04	+0.06 -0.02	＞2.5-4.0	±0.06	±0.04	＞1.5	±0.10	±0.08
＞9-12	±0.15	±0.07	＞4.5-6.0	+0.08 -0.04	+0.06 -0.02	＞4.0	±0.07	±0.04
＞12	±0.20	±0.10	＞6.0	+0.10 -0.05	+0.08 -0.02
