Single Cut Tungsten Carbide Rotary Burrs For Aluminum Workpiece Grinding

Ask Lasest Price
Brand Name :	Seego Carbide
Model Number :	Tungsten Carbide Rotary Burrs
Certification :	ISO CE SGS
Price :	Negotiable Price
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000000 pcs per month
Delivery Time :	Regular orderl within 7-10 days after order confirmed

Add to Cart

Product Details
Company Profile

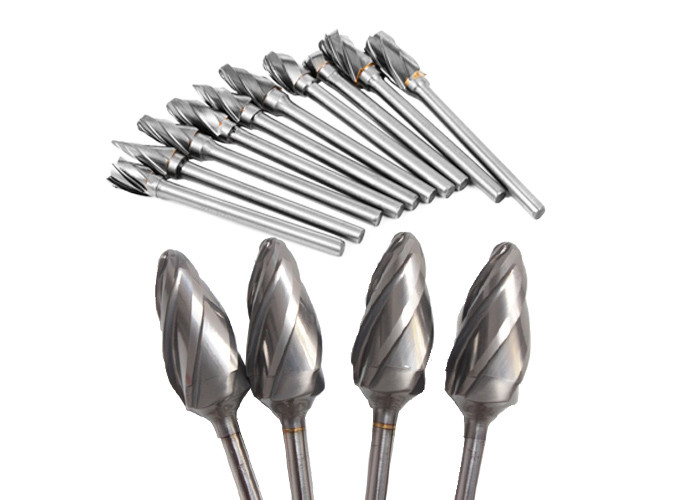

Single Cut Tungsten Carbide Rotary Burrs For Aluminum Workpiece Grinding

Tungsten Carbide Rotary Burrs Single Cut for Aluminum Workpiece Grinding

Description:

Solid Carbide Burs for Aluminum have a coarser flute than commen burrs designs, which results in improved cutting performance on non-ferrous and non-metallic materials. It is designed for rapid stock removal with minimum chip loading.

Manufacturing Features:

All our offered carbide burrs are CNC grinded, tolerance controlled at 0.00~0.005mm

Made from Tungsten Carbide K20 Micro grain size WC, hardness>90HRC

Carbide burr head size from 6mm to 25mm.

With steel shank size of 3mm, 6mm and 6.35mm welded to the burr.

Different cut are available (Standard Single, Fine Single, Coarse cutter, Chip Breaker, Double-Cut(Cross) Coarse Double-cut, Fine Double-Cut, Diamond Cut, Non-Ferrous-Aluminium Cut).

We would recommend for suitable select cut according to the processed material.

Types:

Tool No.	Head Dia	Cut Length	Shank Dia	Total Length	Tool No.	Head Dia	Cut Length	Shank Dia	Total Length
A0312	3	12	6/6.35	57	B0312	3	12	6/6.35	57
A0316	3	16	6/6.35	61	B0316	3	16	6/6.35	61
A0416	4	16	6/6.35	61	B0416	4	16	6/6.35	61
A0516	5	16	6/6.35	61	B0516	5	16	6/6.35	61
A0616	6	16	6/6.35	61	B0616	6	16	6/6.35	61
A0625	6	25	6/6.35	70	B0625	6	25	6/6.35	70
A0820	8	20	6/6.35	65	B0820	8	20	6/6.35	65
A1020	10	20	6/6.35	65	B1020	10	20	6/6.35	65
A1125	11	25	6/6.35	70	B1125	11	25	6/6.35	70
A1225	12	25	6/6.35	70	B1225	12	25	6/6.35	70
A1625	16	25	6/6.35	70	B1625	16	25	6/6.35	70
A1925	19	25	6/6.35	70	B1925	19	25	6/6.35	70
A2225	22	25	6/6.35	70	B2225	22	25	6/6.35	70
A2525	25	25	6/6.35	70	B2525	25	25	6/6.35	70
C0312	3	12	6/6.35	57	D0302	3	3	6/6.35	47
C0316	3	16	6/6.35	61	D0504	5	4	6/6.35	49
C0416	4	16	6/6.35	61	D0605	6	6	6/6.35	50
C0516	5	16	6/6.35	61	D0807	8	8	6/6.35	52
C0616	6	16	6/6.35	61	D1009	10	10	6/6.35	54
C0625	6	25	6/6.35	70	D1210	12	12	6/6.35	55
C0820	8	20	6/6.35	65	D1614	16	16	6/6.35	60
C1020	10	20	6/6.35	65	D1917	19	19	6/6.35	62
C1125	11	25	6/6.35	70	D2522	25	25	6/6.35	67
C1225	12	25	6/6.35	70
C1625	16	25	6/6.35	70
C1925	19	25	6/6.35	70
C2225	22	25	6/6.35	70
C2525	25	25	6/6.35	70

Single Cut Tungsten Carbide Rotary Burrs For Aluminum Workpiece Grinding
