Brand Name : | Seego Carbide |
Model Number : | Type Square, V, Round shape... and Customized |
Certification : | ISO CE SGS |
Price : | USD $0.50~$5.00/pc |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100000 pcs per week |
Delivery Time : | 7~10 days after order confirmed |

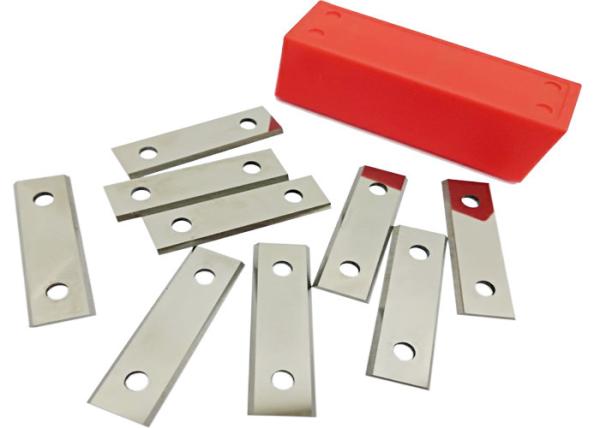

Hard Alloy Tungsten Carbide Woodworking Tool Knives for Wood
Grinding Polishing
Description:
Our offered tungsten carbide woodworking tool knives hardwood cutting, grinding and polishing.
Our cutters are strictly inspected after each process, including body thickness, size, flatness, bore, angle, hardness.
make sure they are in very good condition when you receive them.
Types:
Reversible Knives, Reversible Knives for Portable Planers, Profiled Standard Blanks Cutting Tools, Blanks for Profiling and Woodwording Drill.
Advantage:
1). Carbide body: Our carbide grade specially for wood working,
make our inserts have longer tool life, save your time and cost.
2). Fine Finishing: Strict size control and nice grinding job on
the surfaces, it make our inserts fit your tools perfectly.
3). Fast delivery: We have stock for standard types, like 14x14x2
mm, 15x15x2.5 mm, 50x12x1.5 mm, V shaped, Rounded inserts....
4). Carbide material: 100% virgin material, Submicron grain size,
high hardness, strenght, wear resistance
5). OEM & ODM Service with direct factory price & cool quality
Grades:
Grade | Binder % | Hardness(HRA) | TRS(N/mm2) |
YL10.2 | 10.0 | 91.8 | 2400 |
YG6X | 6.0 | 91.5 | 1800 |
YG6 | 6.0 | 90.5 | 1900 |
YG8 | 8.0 | 89.5 | 2200 |
YG12X | 12 | 88.5 | 2300 |
Specifications:
Length | Width | Thickness | Distance from Rib to Hole h | Hole Diameter d |
10 | 20.3 | 2 | 6 | 4.2 |
12 | 20.3 | 2 | 6 | 4.2 |
15.1 | 20.3 | 2 | 6 | 4.2 |
16.2 | 20.3 | 2 | 6 | 4.2 |
16.2 | 25.3 | 2 | 6 | 4.2 |
18 | 18.3 | 2 | 6 | 4.2 |
18.2 | 18.3 | 2 | 6 | 4.2 |
18.2 | 25.3 | 2 | 6 | 4.2 |
18.2 | 36.3 | 2 | 6 | 4.2 |
20 | 20.5 | 2 | 6.5 | 4.2 |
20 | 25.5 | 2 | 6.5 | 4.5 |
20 | 25.5 | 2 | 6.5 | 4.2 |
20 | 25.5 | 2 | 6 | 4.2 |
20 | 30.5 | 2 | 6.5 | 4.5 |
20 | 30.5 | 2 | 6.5 | 4.2 |
20 | 35.5 | 2 | 6.5 | 4.2 |
20.2 | 20.3 | 2 | 6 | 4.2 |
20.2 | 25.3 | 2 | 6 | 4.2 |
20.2 | 30.3 | 2 | 6 | 4.2 |
22.2 | 25.3 | 2 | 6 | 4.2 |
24 | 28.3 | 2 | 6 | 4.2 |
24.2 | 20.3 | 2 | 6 | 4.2 |
24.2 | 28.3 | 2 | 6 | 4.2 |
24.4 | 28.5 | 2 | 6 | 4.2 |
25 | 20.5 | 2 | 6.5 | 4.2 |
25 | 25.5 | 2 | 6.5 | 4.2 |
25 | 30.5 | 2 | 6.5 | 4.2 |
25 | 35.5 | 2 | 6.5 | 4.2 |
30 | 20.5 | 2 | 6.5 | 4.2 |
30 | 25.5 | 2 | 6.5 | 4.2 |
30 | 30.5 | 2 | 6.5 | 4.2 |
30 | 35.5 | 2 | 6.5 | 4.2 |
32 | 22.3 | 2 | 6 | 4.2 |
35 | 25.5 | 2 | 6.5 | 4.2 |
35 | 30.5 | 2 | 6.5 | 4.2 |
35 | 35.5 | 2 | 6.5 | 4.2 |
40 | 30.3 | 2 | 6 | 4.2 |
We could make to customized samples and drawings, welcome your
contact!
![]() |
