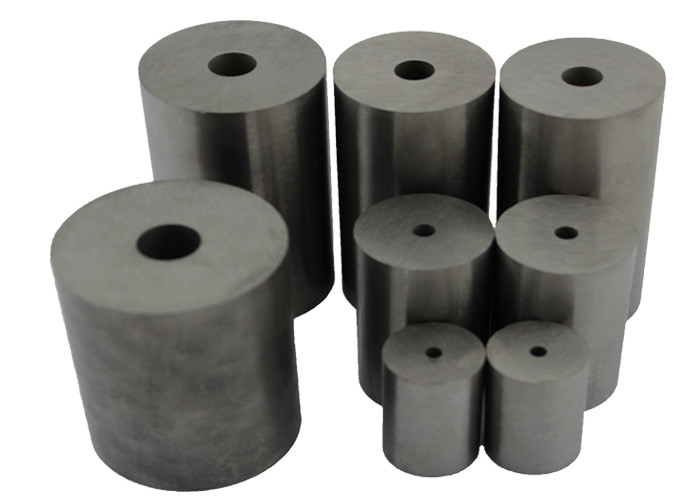

    YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height

    Ask Lasest Price
    Brand Name : Seego Carbide
    Model Number : Tungsten Carbide Cold Forging Dies
    Certification : ISO SGS CE
    Price : USD $40.00~$60.00 / kg
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 tons/month
    Delivery Time : 15~20 days after order confirmed
    • Product Details
    • Company Profile

    YG25 Tungsten Carbide Cold Forging Dies For Fastener Industry 10~50mm Height

    YG25 Tungsten Carbide Cold Forging Dies for Fastener Industry


    Descriptions:


    We are manufacturers and suppliers of all types of Carbide Forging Dies. These dies are used for Cold forging and Hot forging.

    Our carbide forging dies are used on the cold forging machine, making the materials cutting, reforming, forming to the mould.

    we use the advanced HIP sintering technology which makes better density.

    It can make the working life longer and the punching resistantance improved.

    Different grades of Tungsten Carbide are used for carbide forging dies making, such as YG25C, YG25, YG20C, YG20, YG15 and YG12, etc. consisting of 25% or 20% or 15% or 12% Cobalt.


    Grades for Tunsten Carbide Cold Forging Dies:

    GRADEDENSITY (g/cm3)TRS (N/mm2)HARDNESS (HRA)Application recommended
    YG1514280087.5For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress.
    YG2013.5320085.5For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps.
    YG20C13.5330083.5Dies for wear resistant or impact resistant application.
    YG22C13.3350083Nut forming dies and high impact resistance forging dies
    YG25C13.1360082.5Stainless bolt header dies and rollers.

    Specifications:


    Heading die blanks for making standard bolts
    TypeDimensionRange of ApplicationsTypeDimensionRange of Applications
    dDLdDL
    BDP00710-0.71012.0~20.0M1BDP04622-4.62235.0~60.0M6
    BDP01010-11012.0~20.0M1.5~M2BDP05422-5.42220.0~60.0M6
    BDP01013-11315.4-40.0M1.5~M2BDP06422-6.42220.0~60.0M8
    BDP01213-1.21315.4-40.0M1.5~M2BDP06425-6.42520.0~50.0M8
    BDP01510-1.51012.0~25.0M2BDP06430-6.43025.0~60.0M8
    BDP01516-1.51615.0-45.0M2BDP07230-7.23020.0~60.0M10
    BDP01813-1.81312.0~35.0M2.5BDP08230-8.23020.0~60.0M10
    BDP01816-1.81620.0-45.0M2.5BDP08235-8.23530.0~60.0M10
    BDP02113-2.11315.0~30.0M3BDP09230-9.23020.0~60.0M12
    BDP02116-2.11625.0-45.0M3BDP10030-103020.0~60.0M12
    BDP02316-2.31615.0-45.0M3BDP10035-103530.0~60.0M12
    BDP02522-2.52220.0-60.0M3BDP11235-11.23520.0~60.0M12
    BDP02813-2.81315.0~30.0M4BDP11240-11.24020.0~60.0M12
    BDP02816-2.81625.0-40.0M4BDP11835-11.83520.0~60.0M14
    BDP02818-2.81820.0-50.0M4BDP11840-11.84025.0~30.0M14
    BDP02820-2.82020.0-50.0M4BDP13235-13.23525.0~60.0M14
    BDP02822-2.82220.0-60.0M4BDP13240-13.24025.0~50.0M14
    BDP02825-2.82520.0-60.0M4BDP13835-13.83520.0~60.0M16
    BDP03216-3.21615.0-45.0M4BDP13840-13.84025.0~35.0M16
    BDP03218-3.21815.0-50.0M4BDP14445-14.44525.0~60.0M16
    BDP03616-3.61620.0-50.0M5BDP15445-15.44530.0~50.0M18
    BDP03618-3.61820.0-60.0M5BDP16445-16.44525.0~60.0M20
    BDP03822-3.82220.0~40.0M5BDP17445-17.44525.0~60.0M20
    BDP03830-3.83050.0~60.0M5BDP19445-19.44525.0~55.0M22
    BDP04218-4.21820.0-60.0M5BDP21050-215025.0~55.0M24
    BDP04616-4.61620.0~30.0M6BDP24460-24.46030.0~50.0M27

    Advantages:


    1. 100% raw material for production.

    2. Hip sintered, reliable hardness, durable wear resistance
    3. Various sizes, carbide grade and full types available
    4. Competitive price with on-time delivery
    5. Customized product as per drawing and small order accepted,professional and in-time technical support
