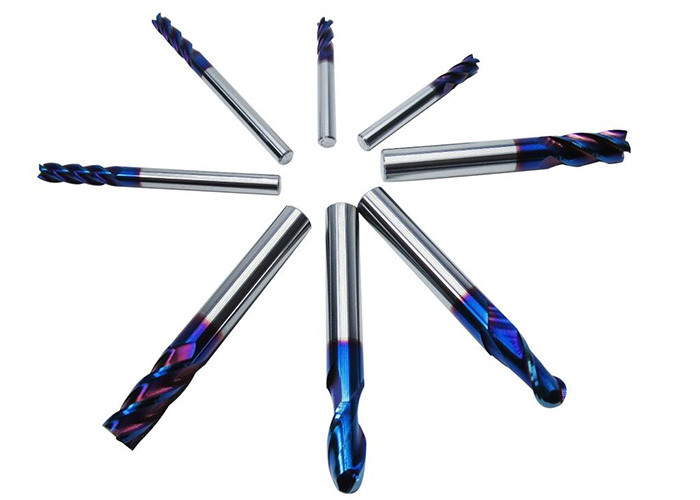

High Precision 2F 3F 4F Tungsten Carbide End Mill Cutters
Features:
1. Raw Material: Ultra Fine Micro grain with Diameter less than
0.4UM
2. Chemical Composition 6%-12% Cobalt
3. Strength 2500-4000N/mm2 Controlling Mode CNC
4. Density14.45-14.90g/cm3
5. Endmills surface TiAIN/ALTiN/TiSiN coated
6. Applied for cast iron, nonferrous alloy,chill cast iron,hard
steel,stainless steel,plastic materials,fiberglass,carbon fiber and
other non-metallic cutting.
7. Served industries: Aerospace,Transportation, Medical Equipment,
Military Manufacturing, Mold Development, etc.
8. ANCA grinding machines grinded
9. Every single 1 piece of endmill packed individually
10. Good after-sales services
Discription:
We are professional munufaturer and supplier for a ranges of high
performance solid carbide end mills, drills, reamers in ultra micro
grain tungsten carbide materials.
All of our Carbide tools are manufactured utilizing the finest sub
micro-grain carbide materials to ensure maximum performance. For
starters, when it comes to Carbide End Mills, we offer an unmatched
selection to meet nearly every imaginable requirement.
Applications: for Aluminum,Copper,Iron,Ordinary Steel,Heat
Resistant Steel,Stainless Steel,Ti Alloy.
Seego Carbide’s end mills offer a variety of coatings. Some end
mills are uncoated, while others are coated with finishes to
enhance performance. Most finishes extend the life of the End Mill
and allow higher cutting speeds and feed rates.
Specifications of corner radius head End Mills:
| Description | D | Lc | L | d | R | z |
| Standard Length | 1.0~6.0 | 3.0~16.0 | 50 | 4~6 | 0.0~2.0 | 2 |
| 8.0 | 20 | 60 | 8 | 0.3~2.0 | 2 |
| 10.0~12.0 | 25~30 | 75 | 10~12 | 0.3~3.0 | 2 |
| 16.0 | 36 | 100 | 16 | 1.0~3.0 | 2 |
| With Long Shank Length | 6.0 | 15 | 785 | 6 | 0.5~1.5 | 2 |
| 8.0~12.0 | 20~30 | 100 | 8~12 | 0.5~2.0 | 2 |
| 16.0 | 36 | 150 | 16 | 0.5~2.0 | 2 |
| Standard Length | 2.0~6.0 | 6.0~16.0 | 50 | 4~6 | 0.1~0.5 | 3 |
| 8.0 | 20 | 60 | 8 | 0.5~1.0 | 3 |
| 10.0~12.0 | 25.0~30.0 | 75 | 10~12 | 0.5~2.0 | 3 |
| 16.0~20.0 | 16.0~45 | 100 | 16~20 | 0.5~4.0 | 3 |
| Standard Length | 1.0~6.0 | 3.0~16.0 | 50 | 4~6 | 0.0~2.0 | 4 |
| 8.0 | 20 | 60 | 8 | 0.3~2.0 | 4 |
| 10.0~12.0 | 25~30 | 75 | 10~12 | 0.3~3.0 | 4 |
| 16.0 | 36 | 100 | 16 | 1.0~3.0 | 4 |
| With Long Shank Length | 6.0 | 15 | 785 | 6 | 0.5~1.5 | 4 |
| 8.0~12.0 | 20~30 | 100 | 8~12 | 0.5~2.0 | 4 |
| 16.0 | 36 | 150 | 16 | 0.5~2.0 | 4 |
Coating:
| Coating Sheet |
| Coating Type | TiAIN | ALTiN | TiSiN | Nano |
| Hardness(HV) | 2800 | 3200 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 800 | 900 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Violet | Black | Copper | Blue |
TiAIN
A special multilayer coating for edge retention and corrosion
resistance when used on a wide range of materials including iron
based, hardened steels, and stainless steels. Typically TiAIN is
used in applications with lower cutting speeds than TiSiN and ALTiN
but often improves the tool's lifetime by a factor of three or
more.
ALTiN
A general purpose coating that offers improved wear resistance to
abrasive, adhesive, or difficult to machine materials such as cast
iron, aluminum alloys, steels, copper and more. This is a common
used substitute when the advantages of TiAIN cannot be used, as in
applications that cannot generate the speeds and feeds required for
higher cutting temperatures. ALTiN is harder and more impact
resistant than TiAIN and can improve tool life.
TiSiN
This is a high performance coating for milling, tapping and
drilling in stainless steels, carbon steels, alloy steels, and cast
iron. This coating is extremely heat resistant and can be used with
or without coolant. It is exceptional in difficult to machine
materials where adhesive wear is particularly high and can be run
at much higher speeds and feeds than all other coatings.
