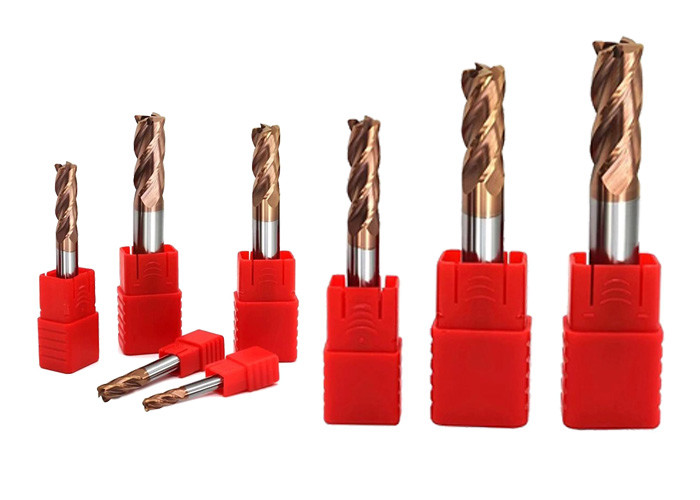

Solid Carbide End Mills for CNC Milling Machines with Finishing
Surface Cutting
Discription:
A finishing carbide end mill has one square end and the outside
diameter is smooth for creating smooth surface finishes. They come
in a variety of helix angles and numbers of flutes. They are mainly
used for side milling operations.
Cutting material is an important consideration when selecting an
end mill. Carbide End Mills can run at higher speeds than
high-speed or alloy steel, it is also more resistant to wear and
can be used at very high working temperatures. Alloy Steel End
Mills resists abrasion and high working temperatures, and has
higher feed rates than High-speed Steel. High-speed Steel End Mills
are compatible with a variety of materials and is typically used
for less demanding jobs. Tungsten carbide material is the better
choice in cutting industry.
Features:
1. Raw Material: Ultra Fine Micro grain with Diameter less than
0.4UM
2. Chemical Composition 6%-12% Cobalt
3. Strength 2500-4000N/mm2 Controlling Mode CNC
4. Density14.45-14.90g/cm3
5. Endmills surface TiAIN/ALTiN/TiSiN coated
6. Applied for cast iron, nonferrous alloy,chill cast iron,hard
steel,stainless steel,plastic materials,fiberglass,carbon fiber and
other non-metallic cutting.
7. Served industries: Aerospace,Transportation, Medical Equipment,
Military Manufacturing, Mold Development, etc.
8. ANCA grinding machines grinded
9. Every single 1 piece of endmill packed individually
10. Good after-sales services
Coating:
| Coating Sheet |
| Coating Type | TiAIN | ALTiN | TiSiN | Nano |
| Hardness(HV) | 2800 | 3200 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 800 | 900 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Violet | Black | Copper | Blue |
TiAIN
A special multilayer coating for edge retention and corrosion
resistance when used on a wide range of materials including iron
based, hardened steels, and stainless steels. Typically TiAIN is
used in applications with lower cutting speeds than TiSiN and ALTiN
but often improves the tool's lifetime by a factor of three or
more.
ALTiN
A general purpose coating that offers improved wear resistance to
abrasive, adhesive, or difficult to machine materials such as cast
iron, aluminum alloys, steels, copper and more. This is a common
used substitute when the advantages of TiAIN cannot be used, as in
applications that cannot generate the speeds and feeds required for
higher cutting temperatures. ALTiN is harder and more impact
resistant than TiAIN and can improve tool life.
TiSiN
This is a high performance coating for milling, tapping and
drilling in stainless steels, carbon steels, alloy steels, and cast
iron. This coating is extremely heat resistant and can be used with
or without coolant. It is exceptional in difficult to machine
materials where adhesive wear is particularly high and can be run
at much higher speeds and feeds than all other coatings.
