High Hardness Solid Tungsten Carbide End Mill For Hard Material Aluminum

Ask Lasest Price
Brand Name :	Seego Carbide
Model Number :	Tungsten Carbide End Mills
Certification :	CE SGS ISO
Price :	USD $0.80~$10.00/pc
Payment Terms :	L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability :	100000pcs per month
Delivery Time :	7~20 days after order confirmed

Add to Cart

Product Details
Company Profile

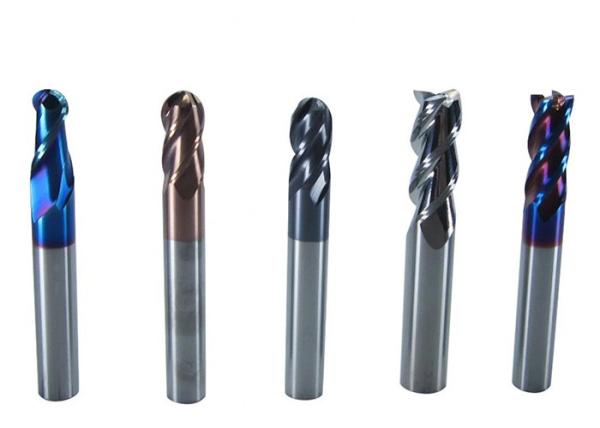

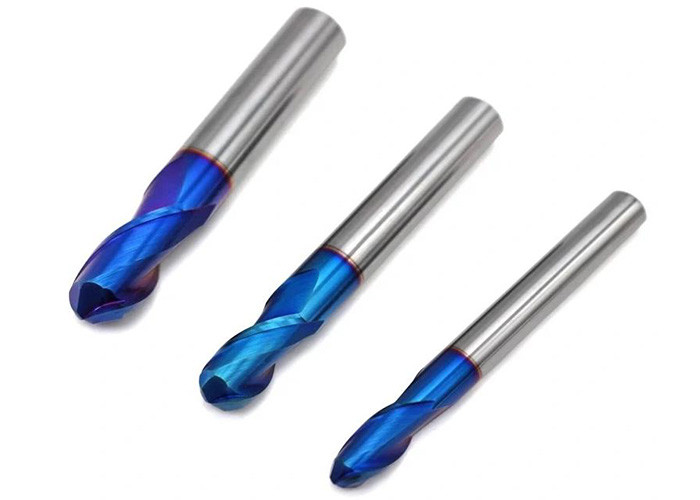

High Hardness Solid Tungsten Carbide End Mill For Hard Material Aluminum

Solid Tungsten Carbide End Mills for Hard Material Milling Cutting Use

Discription:

Solid Carbide End Mills are made from ultra micro-grain carbide will produce with quality surfaces in cast iron, sintered materials, aluminum and some steels. The unique characteristics of the newer ultra fine grain materials will support cutting action in carbide end mills at high rates with extremely good wear resistance. Coatings to insure smooth finish enhance the quality of the surfaces milled and improve the heat resistance insuring long tool life.

All of our Carbide tools are manufactured utilizing the finest sub micro-grain carbide materials to ensure maximum performance.

For starters, when it comes to Carbide End Mills, we offer an unmatched selection to meet nearly every imaginable requirement.

Seego Carbide’s end mills offer a variety of coatings with finishes to enhance performance. Most finishes extend the life of the endmill and allow higher cutting speeds and feed rates.

Applications:

Applied for Aluminum, Copper, Iron, Ordinary Steel, Heat Resistant Steel, Stainless Steel, Ti Alloy cutting.

Coating:

Coating Sheet
Coating Type	TiAIN	ALTiN	TiSiN	Nano
Hardness(HV)	2800	3200	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	800	900	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Violet	Black	Copper	Blue

Specifications of 2 flutes End Mills:

Description	D	Lc	L	d	z
Standard Length	1.0~6.0	3.0~16	50	3~6	2
	6.0~8.0	16~20	60	6~8	2
	8.5~12.0	20~30	75	10~12	2
	14.0~25.0	40~50	100	14~25	2
With Long Flutes Length	3.0~6.0	4.0~6.0	75	12~21	2
	3.0~12.0	4.0~12.0	100	12~45	2
	6.0~25.0	6.0~25.0	150	45~75	2
With Long Shank Length	6.0~8.0	16~20	75	6~8	2
	8.0~12.0	16~30	100	6~12	2
	10.0~12.0	25~30	150	10~12	2
With Stub Length	4.0~6.0	2.0~9.0	50	1~6	2
	8.0	10~12	60	8	2
	10.0	15	75	10	2
	12.0	18	75	12	2
	16	24	100	16	2

High Hardness Solid Tungsten Carbide End Mill For Hard Material Aluminum
