Brand Name : | Seego Carbide |
Model Number : | Standard or customized |
Certification : | ISO9001:2015 |
Price : | Can be Negotiable |
Payment Terms : | T/T, Western Union,, L/C, D/P |
Supply Ability : | 50 tons/year |
Delivery Time : | 18-20 days |

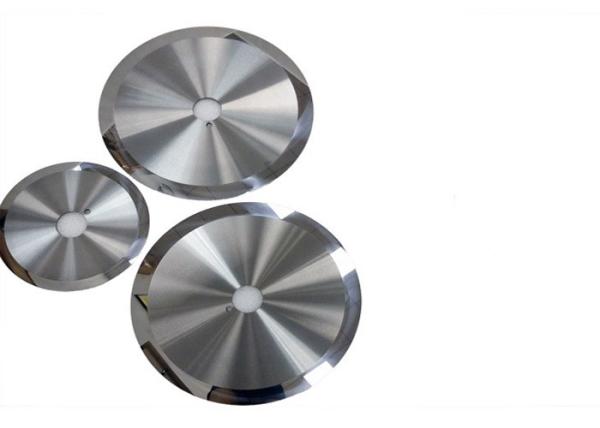

Solid Tungsten Carbide Circular Slitter Knife For Cutting Copper And Aluminum Foil
Tungsten carbide(WC) is approximately three times working life than tool steels.
Industries served:
Cigarette
Steel Mills
Corrugted
Metalworking
Paper Converting
Plastic Processing
Features and advantages:
Our superior tungsten carbide razor slitting blades are used
successfully in many corrugated board plants world-wide. With
optimum grade selection, our sub micron grain size tungsten carbide
blades can slit some additional million metres of corrugated board.
Specifications | Outer diameter | Inner diameter | Thickness |
φ120*φ25.4*2 | 120 | 25.4 | 2 |
φ150*φ25.4*2 | 150 | 25.4 | 2 |
φ180*φ25.4*2 | 180 | 25.4 | 2 |
φ200*φ25.4*2 | 200 | 25.4 | 2 |
φ250*φ25.4*2 | 250 | 25.4 | 2 |
φ300*φ25.4*3 | 300 | 25.4 | 3 |
φ350*φ25.4*3/3.5 | 350 | 25.4 | 3/3.5 |
φ400*φ25.4*3 | 400 | 25.4 | 3/3.5 |
φ400*φ25.4*3 | 450 | 25.4 | 3/3.5 |
Applications:
These blades are mainly used in the manufacture of the production
lines,including all kinds of paper tubes,rubber tubes,steel tubes
and other metal tubes.The cutters moving simultaneously with the
tubes.
When rotating around the edges of tubes,blades move slowly into the
center and cut tubes off.
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical
support)
6.ISO 9001 Certification
More details of specific type, please inform us
Material | tungsten carbide | |
Outer diameter | 15 mm to 305 mm | |
Inner diameter | 4 mm to 230 mm | |
Cutting angle | 7 degree to 20 degree | |
Thickness | 0.3 mm to 5.5 mm | |
Hardness | HRC 52~85 |
![]() |
